简介
HDMI Audio Repeater系列主要分为EP91Axx与EP92Axx系列，功能上除了满足audio的ARC传输之外，视频处理上也可实现Matrix，Repeater，Splitter，Switcher，Jitter cleaner应用。
HDMI Audio Repeater主要产品列表
| 型号 | 界面 | 分辨率 | 规格 | 封装 |
| EP91A7P | 1:1 | 600MHz (4K@60Hz) | HDMI 1.4/2.0/2.1, EDID RAM, Reduce Jitter, HDCP 1.4/2.3 conversion, ARC/eARC Rx, SPDIF to IIS converter (LPCM) support 8-channel IIS & SPDIF audio outputs Supports Standard Audio, DSD Audio and HD (HBR) Audio Embedded MCU and HDCP key inside | 88-pin QFN, E-Pad |
| EP91AXE | 1:1 | 600MHz (4K@60Hz) | HDMI 1.4/2.0/2.1, EDID RAM, Reduce Jitter, Xlink, maximum cascade capability HDCP 1.4/2.3 conversion, ARC/eARC Rx, SPDIF to IIS converter (LPCM) support 8-channel IIS & SPDIF audio outputs Supports Standard Audio, DSD Audio and HD (HBR) Audio Embedded MCU and HDCP key inside | 88-pin QFN, E-Pad |
| EP92A7E | 3:1 | 600MHz (4K@60Hz) | HDMI 1.4/2.0/2.1, EDID RAM, Reduce Jitter, HDCP 1.4/2.3 conversion, ARC/eARC Rx, SPDIF to IIS converter (LPCM) support 8-channel IIS & SPDIF audio outputs Supports Standard Audio, DSD Audio and HD (HBR) Audio Embedded MCU and HDCP key inside | 128-pin QFN, E-Pad |
| EP92AXE | 2:1 | 600MHz (4K@60Hz) | HDMI 1.4/2.0/2.1, EDID RAM, Reduce Jitter, Xlink, maximum cascade capability HDCP 1.4/2.3 conversion, ARC/eARC Rx, SPDIF to IIS converter (LPCM) support 8-channel IIS & SPDIF audio outputs Supports Standard Audio, DSD Audio and HD (HBR) Audio Embedded MCU and HDCP key inside | 128-pin QFN, E-Pad |
产品应用

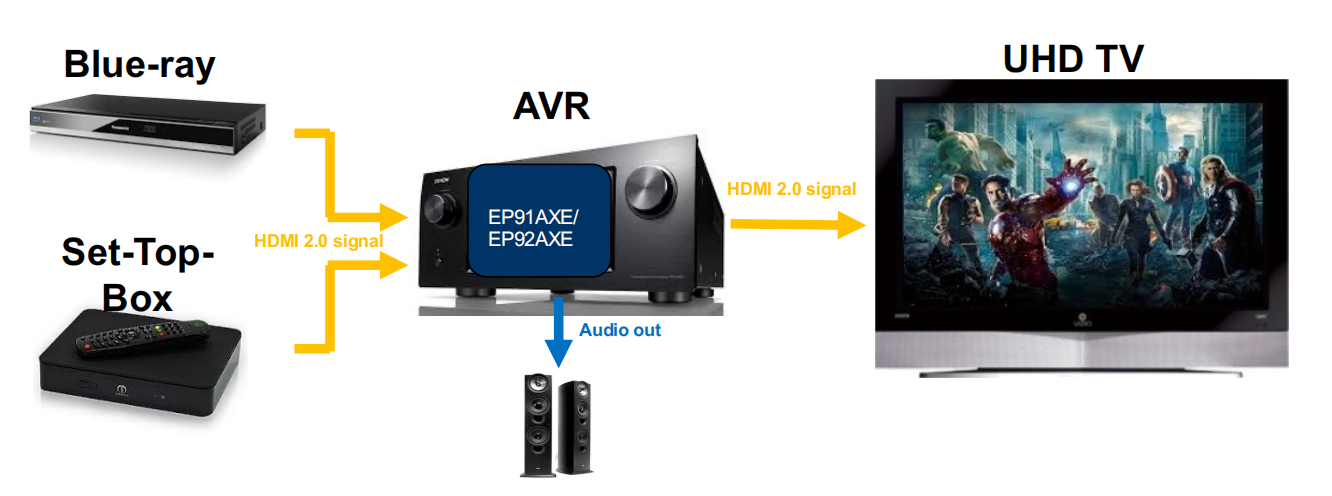

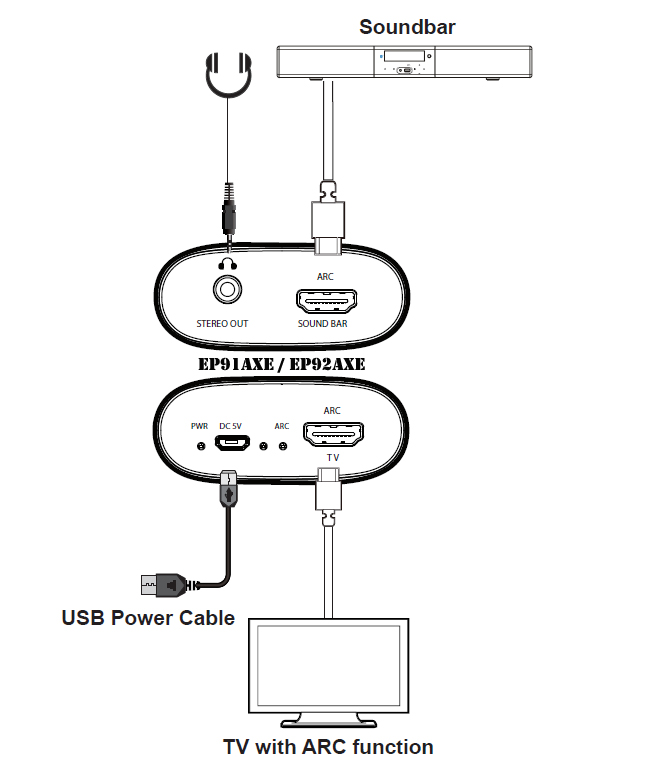

HDMI 2.0 AVR, Home theater, and Soundbar
